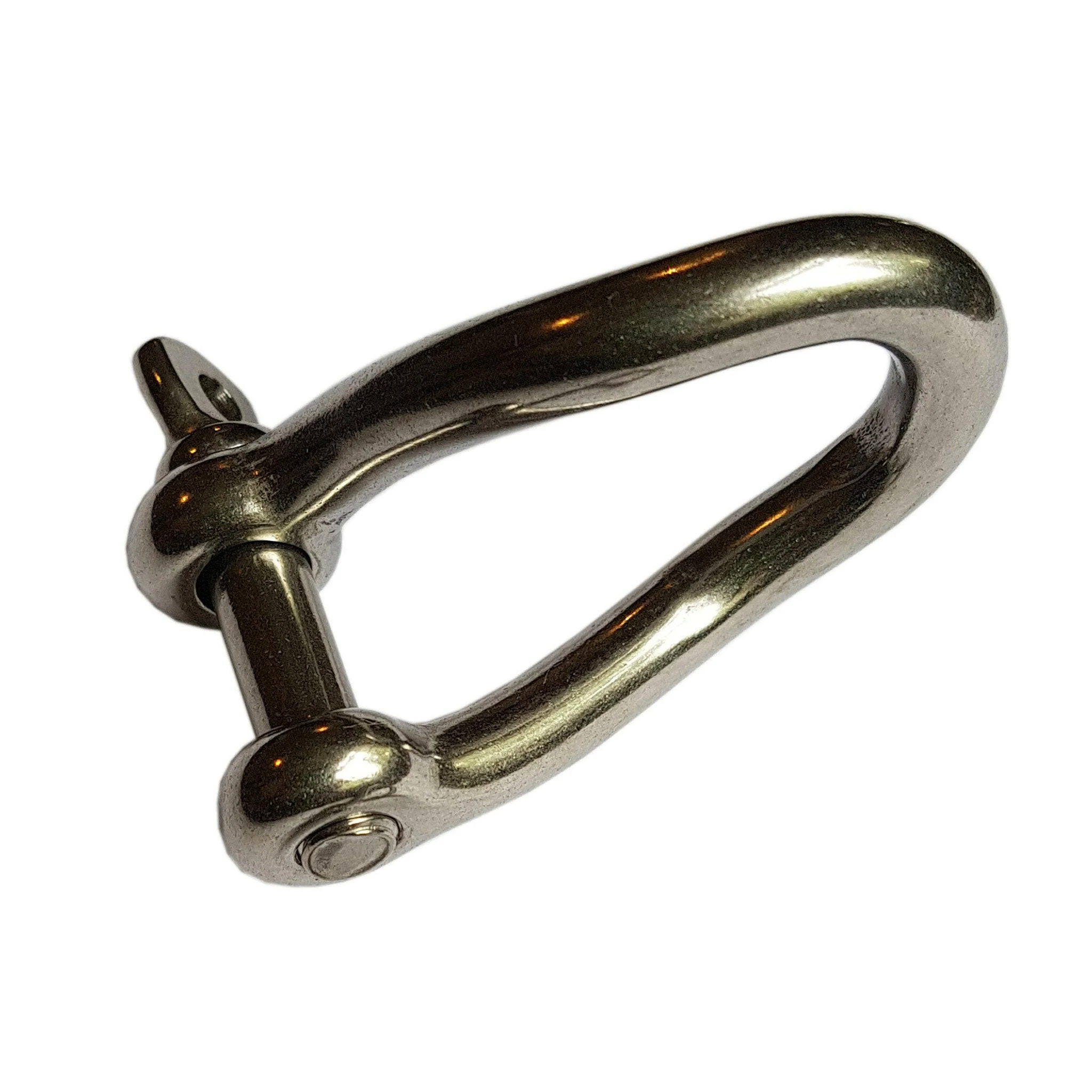

Twisted D Shackle Stainless Steel

Occasionally a normal shackle will not sit neatly and a twisted shackle is required. More often than not this applies when they are used with webbing around the pin as with Jack Stays which need to lie flat on the ground.

Pin Diameter	Internal Width	Length	Breaking Load
4 mm	10 mm	30 mm	927 kg
6 mm	12 mm	36 mm	1,345 kg
8 mm	16 mm	48 mm	2,416 kg
