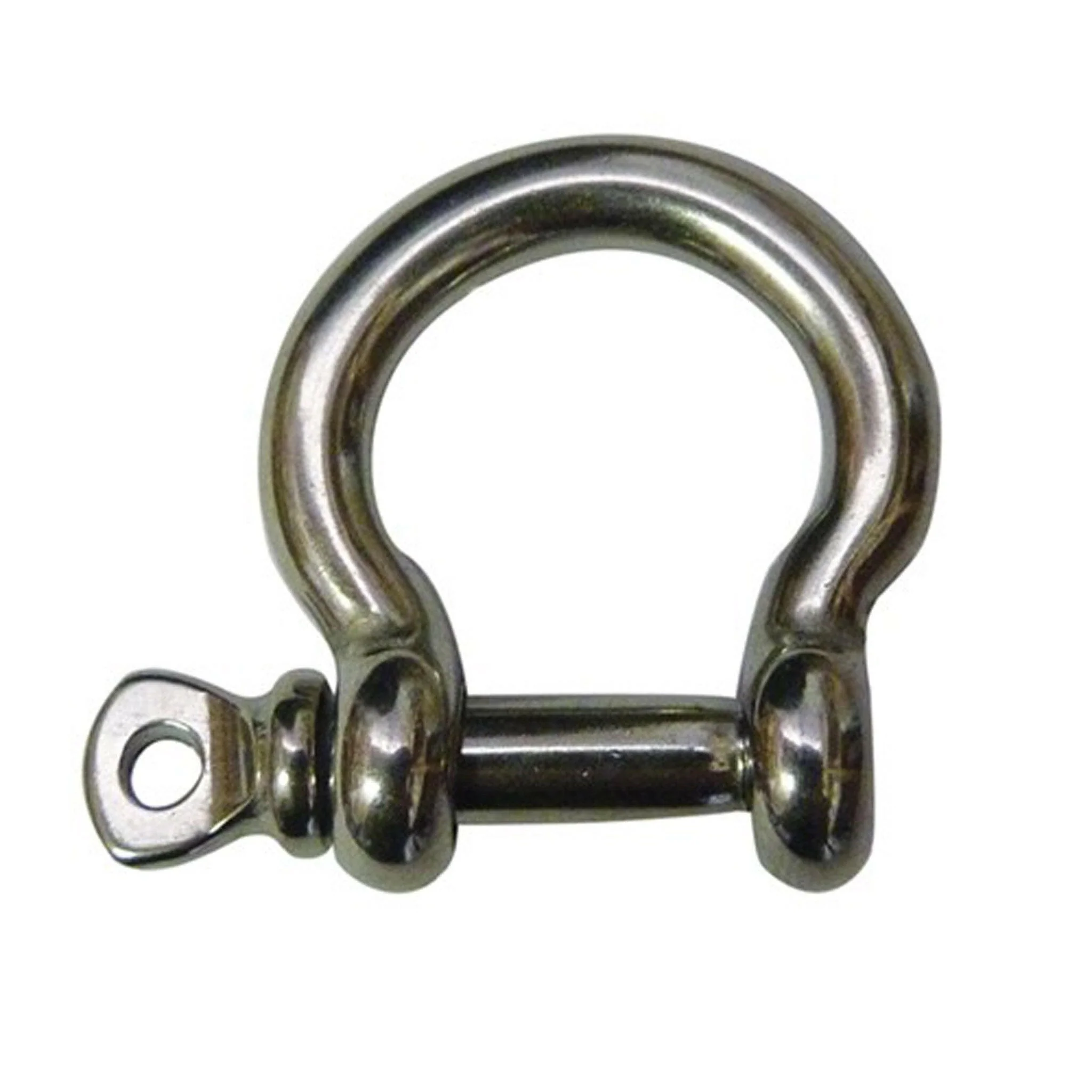

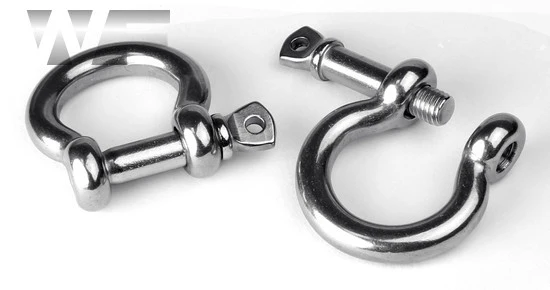

Bow Shackle Stainless Steel

Bow Shackles are used to join more than one wire, chain or rope to an anchor point or to each other. To join a single wire to an anchor point, a Bow Shackle should be selected. These screw pin shackles are designed to be used when fastening and unfastening is reasonably frequent. If they are being left for extended periods, then the pin should be tightened and finally secured with some Monel Seizing Wire. Alternatively choose a Bolt Type Shackle.

When using a shackle it is very important it is able to articulate in the direction of the load. Shackles should be inspected before every use and at regular intervals. Checks should be made for wear, twisting, cracks and corrosion. A little Lanoguard (Anhydrous Lanolin) on the threads will safeguard against seizing.

The stainless steel used in these shackles is marine grade 316 (A4)

Pin Diameter	Jaw Width	Length L1	Radius R	MBL kN	MBL kgf
4 mm	8 mm	16 mm	14 mm	5.8 kN	591 kg
5 mm	10 mm	20 mm	17 mm	9.1 kN	927 kg
6 mm	12 mm	24 mm	21 mm	13.2 kN	1,346 kg
8 mm	16 mm	32 mm	28 mm	23.7 kN	2,416 kg
10 mm	20 mm	40 mm	35 mm	37.8 kN	3,853 kg
12 mm	24 mm	48 mm	42 mm	54.9 kN	5,596 kg
16 mm	32 mm	64 mm		97.7 kN	9.962 kg
19 mm	38 mm	76 mm		136.1 kN	13,878 kg
